FTTA Fiber Optic Enclosure Box Connectorized Huawei Mini SC

Shenzhen Unifiber Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

FTTA Fiber Optic Enclosure Box Connectorized Huawei Mini SC

Brand Name : UNIFIBER-OEM

Model Number : FTTH Fiber Optic Enclosure Box 16 Ports

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs/day

Delivery Time : 3~5 business days

Packaging Details : Carton box

Product : FTTH Fiber Optic Enclosure Box 16 Ports

Ports : 16 core

Waterproof Grade : IP65

Connector : Huawei mini SC

Material : ABS+PC

Sealing Structure : Mechanical Sealing

Installation : Wall-mounted / Pole-mounted / Aerial Installation

Application : FTTH

Contact Now

FTTA Nap Fiber Optic Enclosure Box 16 Ports Pre Connectorized Huawei Mini SC Drop Cable

Pre-Terminated NAP Closure is used as a termination point for the feeder cable to connect with drop cable in the FTTx communication network system. The fiber splicing, splitting, distribution can be done in this FTTA Pre-Terminated NAP Closure, and meanwhile, FTTA Pre-Terminated NAP Closure provides solid protection and management for the FTTx network building.


Features:

Total enclosed structure.
Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP68.
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage,distribution...etc all in one.
Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
The box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
Max Capacity: 16 Core, Huawei Mini SC IP rated Waterproof connectors,
Into the largest cable diameter:12mm,
Output Port Suitable for HUAWEI Type Waterproof Connector,
(Model-1:Without PLC,4PCS SC/APC Adapter),
(Model-2:Without PLC, 8PCS SC/APC Adapter),
(Model-3:Without PLC,16PCS SC/APC Adapter),
(Model-4: 1PCS 1x4 PLC Splitter-SC/APC,4PCS SC/APC Adapter),
(Model-5: 2PCS 1x4 PLC Splitter-SC/APC,8PCS SC/APC Adapter),
(Model-6: 1PCS 1x8 PLC Splitter-SC/APC,8PCS SC/APC Adapter),
(Model-7: 2PCS 1x8 PLC Splitter-SC/APC,16PCS SC/APC Adapter),
(Model-8: 1PCS 1x16 PLC Splitter-SC/APC,16PCS SC/APC Adapter).


Application:
CATV networks
Optical fiber communication
FTTX
Fiber optic network convergence
Optical fiber access network
Widely used in FTTH access network
Telecommunication networks
Data communications networks
Local area networks

.

Specification

Name 16 Ports Pre-Terminated NAP Closure with Waterproof SC/APC Adapter
Capacity 16 Core, Huawei Mini SC IP rated Waterproof connectors
PLC Splitter 1x16 SC Mini Stainless Steel Tube Type PLC Splitter
Dimension(HxWxD) 32X21.5X13CM
Cable Ports 16 Ports
Sealing Structure Mechanical Sealing
Installation Wall-mounted / Pole-mounted / Aerial Installation
Material PC+ABS
Weight 2.1KGS
Protection Level IP68

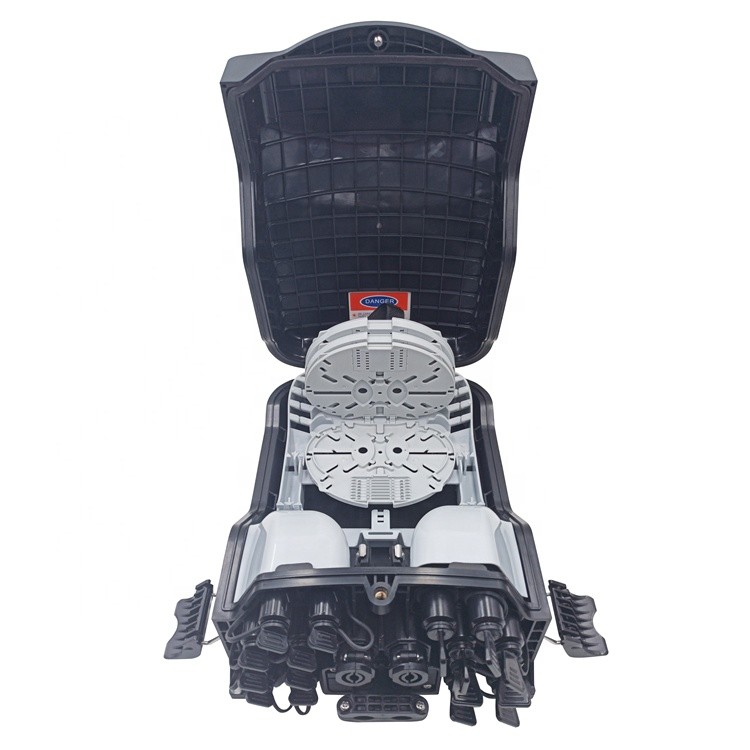

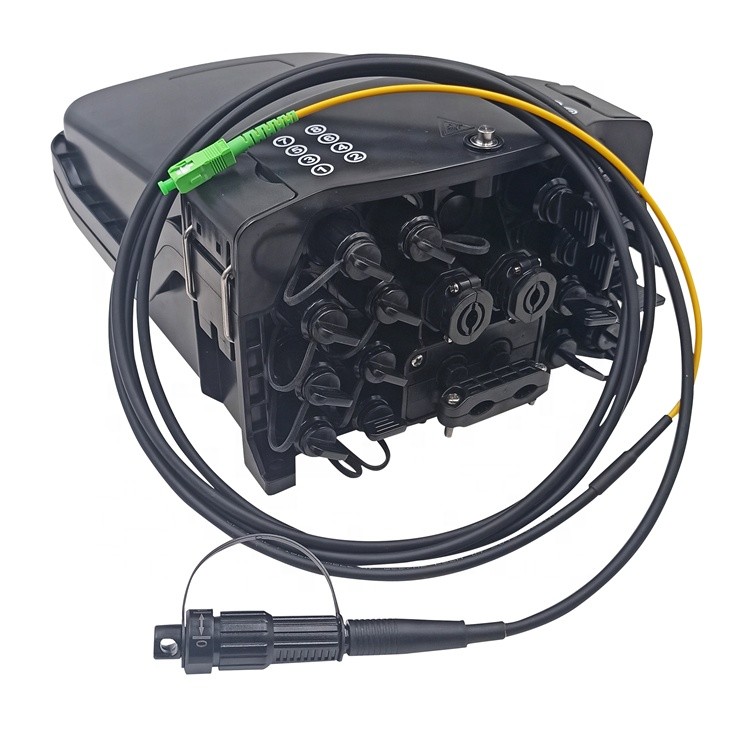

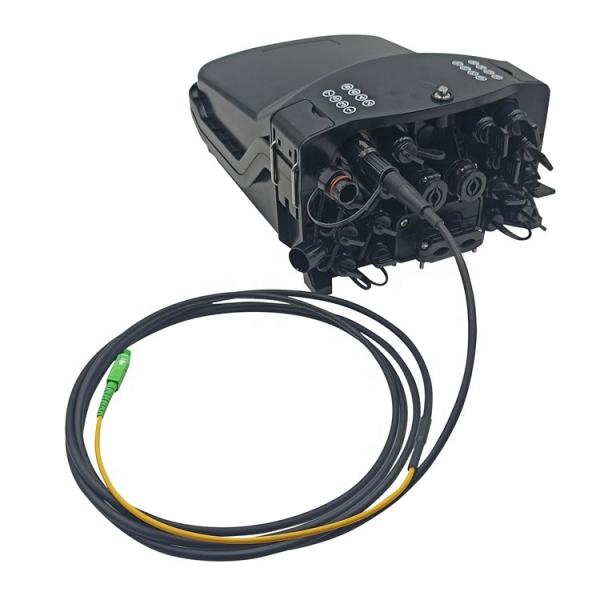

FTTA Fiber Optic Enclosure Box Connectorized Huawei Mini SCFTTA Fiber Optic Enclosure Box Connectorized Huawei Mini SC
