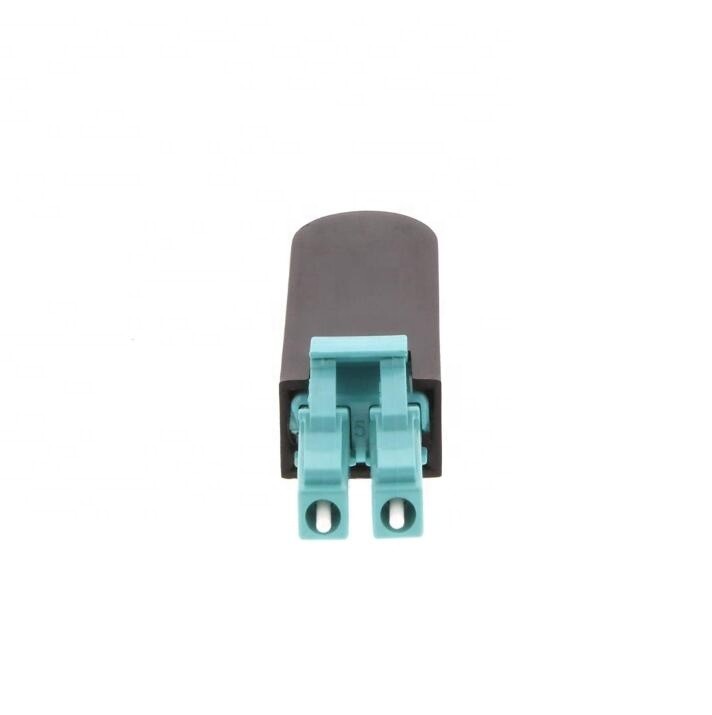

PVC/LSZH Jacket Fiber Optical Patch Cord LC OM3 50/125um Multimode Loopback Modules

Name: PVCLSZH Jacket Fiber Optical Patch Cord LC OM3 50125um Multimode Loopback Modules
Brand: UNIFIBER or OEM
Price: 1 USD

PVC/LSZH Jacket Fiber Optical Patch Cord LC OM3 50/125um Multimode Loopback Modules Manufactures

Brand Name : UNIFIBER or OEM

Model Number : LC

Certification : RoHS

Place of Origin : China

MOQ : 50pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000pcs/day

Delivery Time : 3-5days

Packaging Details : PE bag

Fiber : SM OM1 62.5/125 OM2 50/125UM

Connector type : SC LC

Jacket material : PVC/LSZH

Application : Fiber testing

Length : Customized

Type : Single mode/Multi-mode

Contact Now

LC OM3 50/125um multimode loopback modules, excellent exchangeability and repeatability, for network components testing

Loopback used for testing the system or network system in the signal back, through the return signal, you can detect the network link in a variety of potential anomalies, this test is widely used to ensure the normal network link to provide An effective detection method.
Fiber Optic Loopback Modules may also be used for the burn-in stage of boards and other equipment.Loopback Modules incorprate two fiber optic connectors. One fiber optic connector is plugged into the output port, while the other fiber optic connector is plugged into the input port of the equipment.

Features

High quality ferrule
Various test equipment
Low insertion loss Optical fiber communication system
High return loss

APPLICATIONS

Equipment interconnection
Device pig-tailling
Premise networks
Patch panel applications
Communications connections
LoopBack for network components testing

SPECIFFCATIONS
Type	Singlemode	Multimode
Insertion loss	PC≤ 0.3dB UPC≤ 0.2dB APC ≤ 0.3dB	PC≤ 0.5dB UPC≤ 0.3dB APC ≤ 0.3dB
Return loss	UPC≥ 50dB APC ≥ 60dB	-
Repeatability	≤ 0.1db
Changeability	≤ 0.2dB
Working temperature	-40 to 8o Celsius
Durability	1000 times
Sustain tension	≥ 100N
Fiber	9/125um , 50/125um, 62.5/125um, OM3 etc
Diameter	0.9mm
Cores	duplex

PVC/LSZH Jacket Fiber Optical Patch Cord LC OM3 50/125um Multimode Loopback Modules
