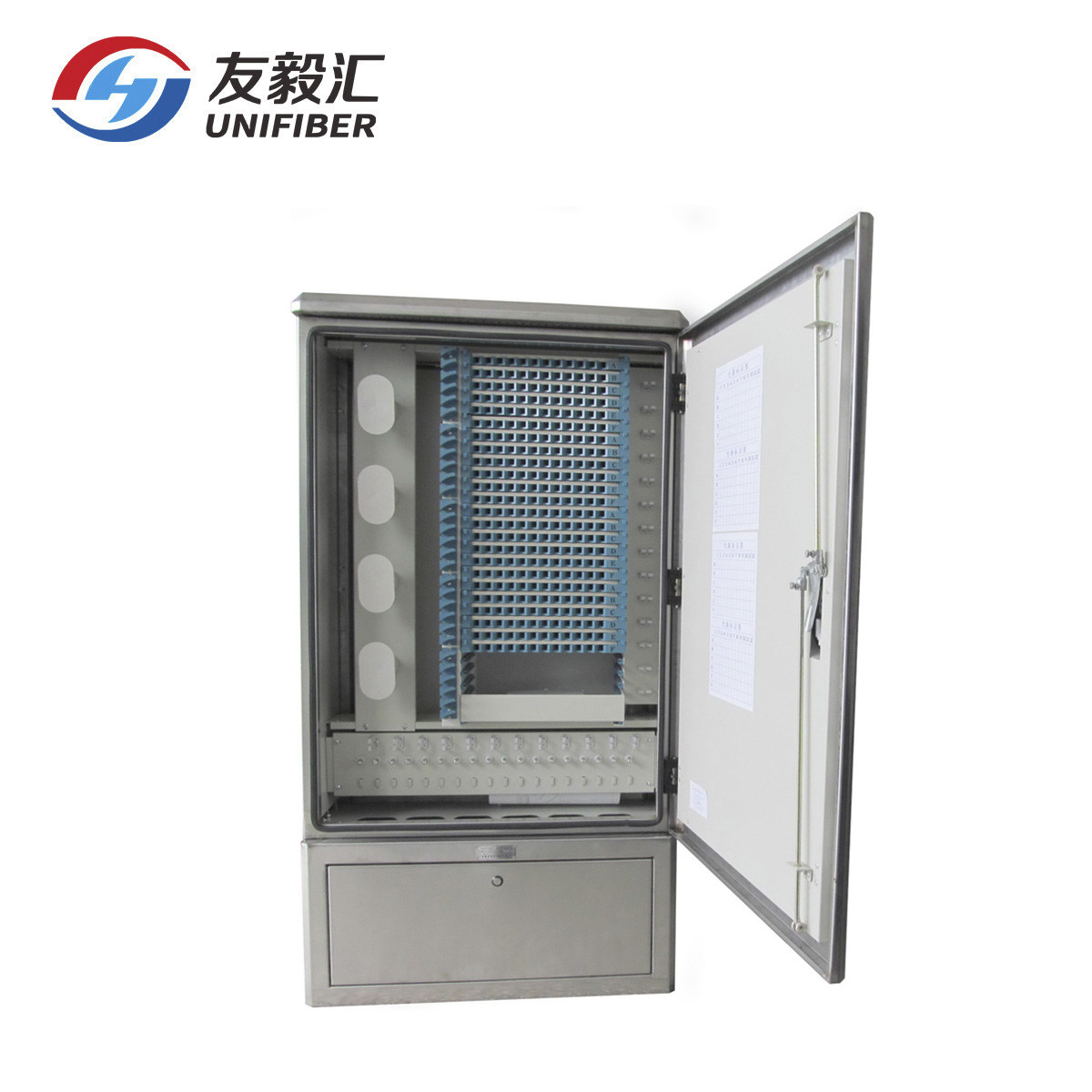

288 Core Outdoor Fiber Optic Cross Connect Cabinet, Telecommunication Optic Fiber Distribution Cabinets
Fiber Optic Cross Connect Cabinet is use for outdoor cable access network, backbone cable and indoor cable arrangement. it with high-capacity, high-density fiber distribution tray, suitable for the composition, splice and distribution of fibers in optical access network to achieve the fiber optic lines connection, distribution and scheduling.
Features:
Perfect design of fiber wiring routing could facilitate management and maintenance of fibers
With secure and reliable fastening and grounding protection devices for the optic fiber
Applicable to strap-shaped and non-strap shaped fibers
High intensity and anti-erosion performance
Able to counter abrupt climate change and extreme environment
Capacity can be flexibly customized as required
Installation is quick and convenient
Built-in direct splice unit is capable for providing direct connection function.
Application:
FTTx access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Specification:
Material: SMC
Protection level: IP65
Nominal work wave-length: 850nm, 1310nm, 1550nm
Insertion loss: ≤0.2dB
Return loss:≥45dB (PC), ≥50dB(UPC), ≥60dB(APC)
Work Temperature: -45℃-+85℃
Relative humidity:≤85%(+30°C)
Atmospheric pressure: 70~106 KPa
Isolation resistance(between frame and protection grounding):>1000 MΩ/500V(DC)
Durability:≥1000 times
Anti-voltage strength: ≥3000V(DC)/1min
Dimensions
Model | Size(W*D*H mm) | Max Capacity |
GXF-06A | 760*360*1540 | 288/256 |
GXF-06B | 550*300*1030 | 144/128 |
GXF-06C | 760*620*1540 | 576/512 |
