Multimode Fiber 50/125um 40G QSFP+ Optical Breakout Cable

  • 1
  • 2
  • 3

Brand Name : UNIFIBER-OEM

Model Number : QSFP+

Certification : CE ROHS FCC

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500pcs/day

Delivery Time : 3~5 business days

Packaging Details : Static bag, Plastic bag, Retail box or specified

Data Rate : 40Gbps

Fiber : OM2/OM3/OM4

Cable Diameter : 3.0mm

Length : 1m 2m 3m 4m 5m or customized

Form Factor : QSFP+

OEM : Support

Contact Now

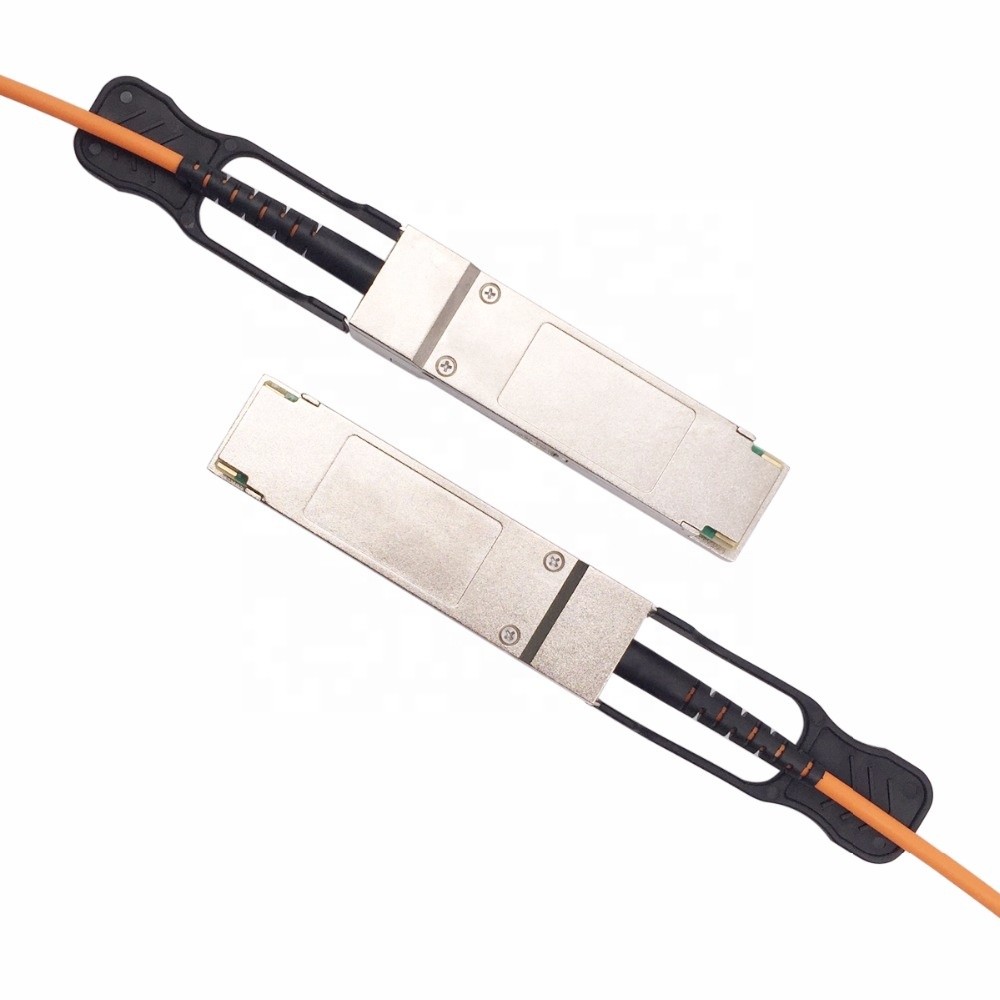

40G QSFP+ to QSFP+ Optical Breakout Cable Multimode Fiber 50/125um, QSFP+ Active Optical AOC Cable 1~10m

QSFP to QSFP Active Optical Cables are a high performance, low power consumption, long reach interconnect solution supporting InfiniBand QDR/DDR/SDR,1.25G/10G/8G/4G/2G fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba.This QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s. And it is one kind of parallel transceiver which provides increased port density and total system cost savings.UNIFIBER 40G QSFP+ AOC active optic cables are designed for 40G Ethernet links reach up to 300m (OM3) or 400m (OM4) over Multi-Mode Fiber (MMF).

Features:

Hot-pluggable QSFP+ form-factor connectors
4 channels full-duplex active optical cables
4x 850nm VCSEL array and PIN photo-detector array
Differential AC-coupled high-speed data interface
Compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4
Data rate up to 41.2Gbps
Length up to 300m over OM3 MMF
Power consumption < 1.5W per end
Operating case temperature range from 0°C to 70°C
3.3V power supply voltage
RoHS compliant (lead free)


Applications:

40GBASE-SR4 Ethernet
InfiniBand 4xSDR/DDR/QDRData center network
Fiber Channel
InfiniBand FDR/EDR 100Gbs
Ethernet

Model No.
Description
Unit
Compatibility
QSFP-AOC-1M
40G QSFP to QSFP AOC 1M, OM2/OM3
Piece
All brands
QSFP-AOC-2M
40G QSFP to QSFP AOC 2M, OM2/OM3
Piece
All brands
QSFP-AOC-3M
40G QSFP to QSFP AOC 3M, OM2/OM3
Piece
All brands
QSFP-AOC-5M
40G QSFP to QSFP AOC 5M, OM2/OM3
Piece
All brands
QSFP-AOC-7M
40G QSFP to QSFP AOC 7M, OM2/OM3
Piece
All brands
QSFP-AOC-10M
40G QSFP to QSFP AOC 10M, OM2/OM3
Piece
All brands
QSFP-AOC-15M
40G QSFP to QSFP AOC 15M, OM2/OM3
Piece
All brands
QSFP-AOC-20M
40G QSFP to QSFP AOC 20M, OM2/OM3
Piece
All brands
Customized Length, OM2/OM3

Multimode Fiber 50/125um 40G QSFP+ Optical Breakout CableMultimode Fiber 50/125um 40G QSFP+ Optical Breakout Cable
