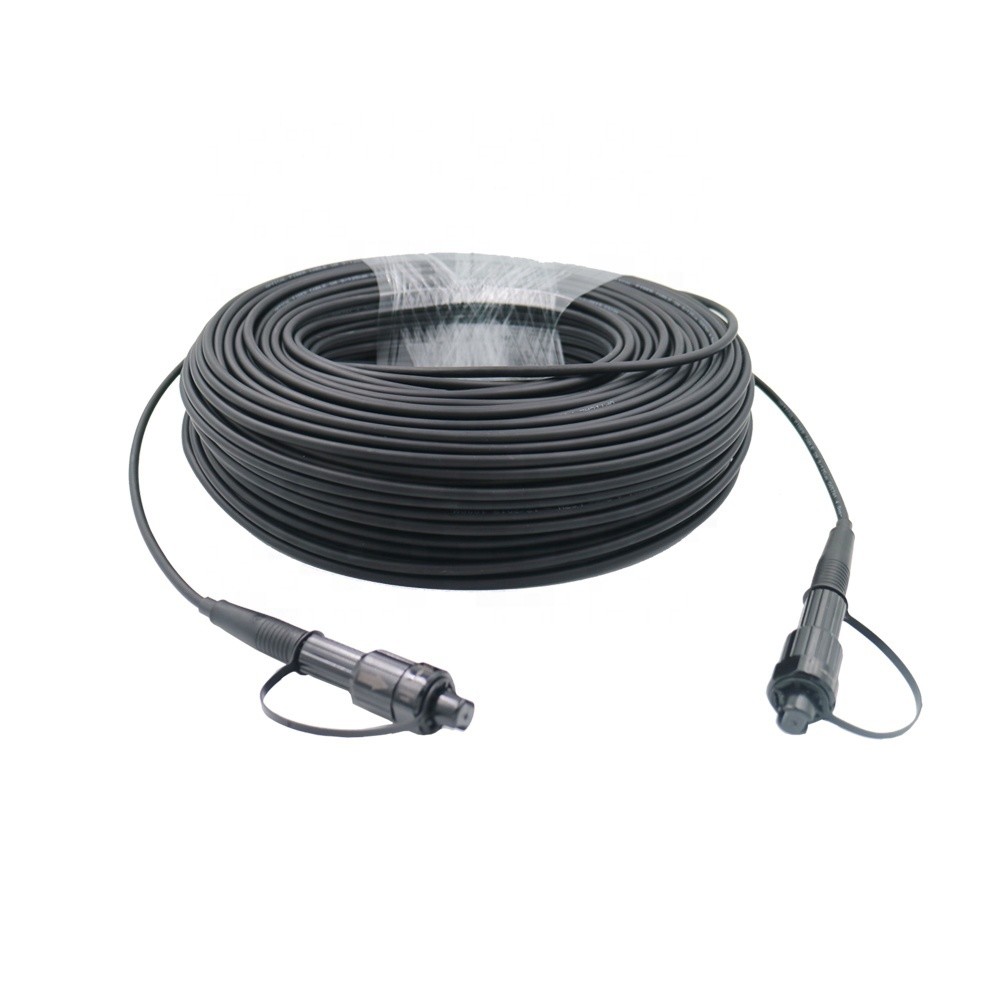

Pre Connectorized Ftth Fiber Optic Drop Cable 4.8mm With SC Connector

Name: Pre Connectorized Ftth Fiber Optic Drop Cable 48mm With SC Connector
Brand: UNIFIBER-OEM
Price: 1 USD

Pre Connectorized Ftth Fiber Optic Drop Cable 4.8mm With SC Connector Manufactures

Brand Name : UNIFIBER-OEM

Model Number : HUAWEI mini SC

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 10000pcs/day

Delivery Time : 3-5days

Packaging Details : PE bag

Connector : mini SC

Cable Jacket : LSZH,TPU,PE

Cable Diameter : 4.8mm or 7mm

Cable Mode : GJFJH

Cable Length : 1/3/5/10m or Customized

Application : FTTH

Contact Now

Outdoor Waterproof ftth fiber optic drop cable patch cord pre connectorized with huawei mini SC connector

Mini SC assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
Spring Huawei Compatible Mini SC pre-terminated OSP drop cables provide easy FTTx (Fiber-To-The-X) installation and termination using existing hardware and installation methods for drops to homes and businesses. Its flat profile is compatible with existing wedge (P) clamps.

Features

IP67 water and dust protection

Seal design: It is waterproof, dust-proof, anti-corrosion and so on.

Easy connection to hardened adapters on terminals or closures
Reduce welding, connect directly to achieve interconnection
Spiral clamping mechanism ensures long-term reliable connection

Compact size, easy to operate, durable

Guide mechanism, can be blinded with one hand, simple and quick, connect and install

APPLICATION
FTTx wiring project

Fiber optic communications in harsh outdoor environments

waterproof fiber equipment SC port

Outdoor communication equipment connection
Remote wireless base station

ype	SM-UPC		SM-APC		MM-UPC
	Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1dB	≤0.3dB	≤0.15dB	≤0.3dB	≤0.05dB	≤0.3dB
Return loss	≥50dB		≥60dB		≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃

Pre Connectorized Ftth Fiber Optic Drop Cable 4.8mm With SC Connector
