Brand Name : UNIFIBER or OEM
Certification : ROHS
Place of Origin : CHINA
MOQ : 10pcs
Price : Negotiable
Payment Terms : L/C, T/T
Supply Ability : 10000pcs/day
Delivery Time : 3-5days
Packaging Details : carton box
Material : ABS+PC
Color : Grey (color can be customized)
Ports : Multiports
Connector : Mini IP SC,Optitap ,ODVA or H connector
Structure : open type
Sealing way : TPE seals
Installation method : overhead, hanging
Size (H*W*D)mm : 250* 80*70mm
Outdoor IP67 waterproof FTTH terminal box with Mini SC waterproof connector
Description
The equipment is used as a termination point for the feeder cable to connect with drop
cable in FTTx communication network system. The fiber splicing, splitting, and distribution
can be done in this box, and meanwhile it provides solid protection and management for
the FTTx network building.
Features
(1). Insertion loss:SC/LC≤0.3dB ,MPT/MPO≤0.5dB,Return loss:≥50dB.
(2). Tensile strength:> 50 N
(3). Job stress: 70 kpa to 106 kpa;
(4). Using the temperature:- 40 ~ + 75 ℃
(5). Relative humidity: ≤85% (+ 30 ℃).
(6). Protection grade: IP67
(7). Internal inventory redundant optical fiber, convenient in operation and maintenance.
(8). Optical fiber can be welding or cold, the applicable scope is wide,especially suitable for the use of
multi-storey and high-rise tenants,easy to install, easy to install.
(9) Material: ABS new resistance fuel, quality assurance, the flame retardant performance accord with
standard of communication industry, flame retardant grade UL94V - level 0
(10). Suitable adapter : MIni-SC, H connector-SC, ODVA-LC,ODVA-MPO,ODVA-MPT.
(11). Structure: open type
(12). Color: grey (color can be customized)
(13). Sealing way: TPE seals
(14). Installation method: overhead, hanging.
(15). Size (H*W*D)mm : 250* 80*70mm
![]() |

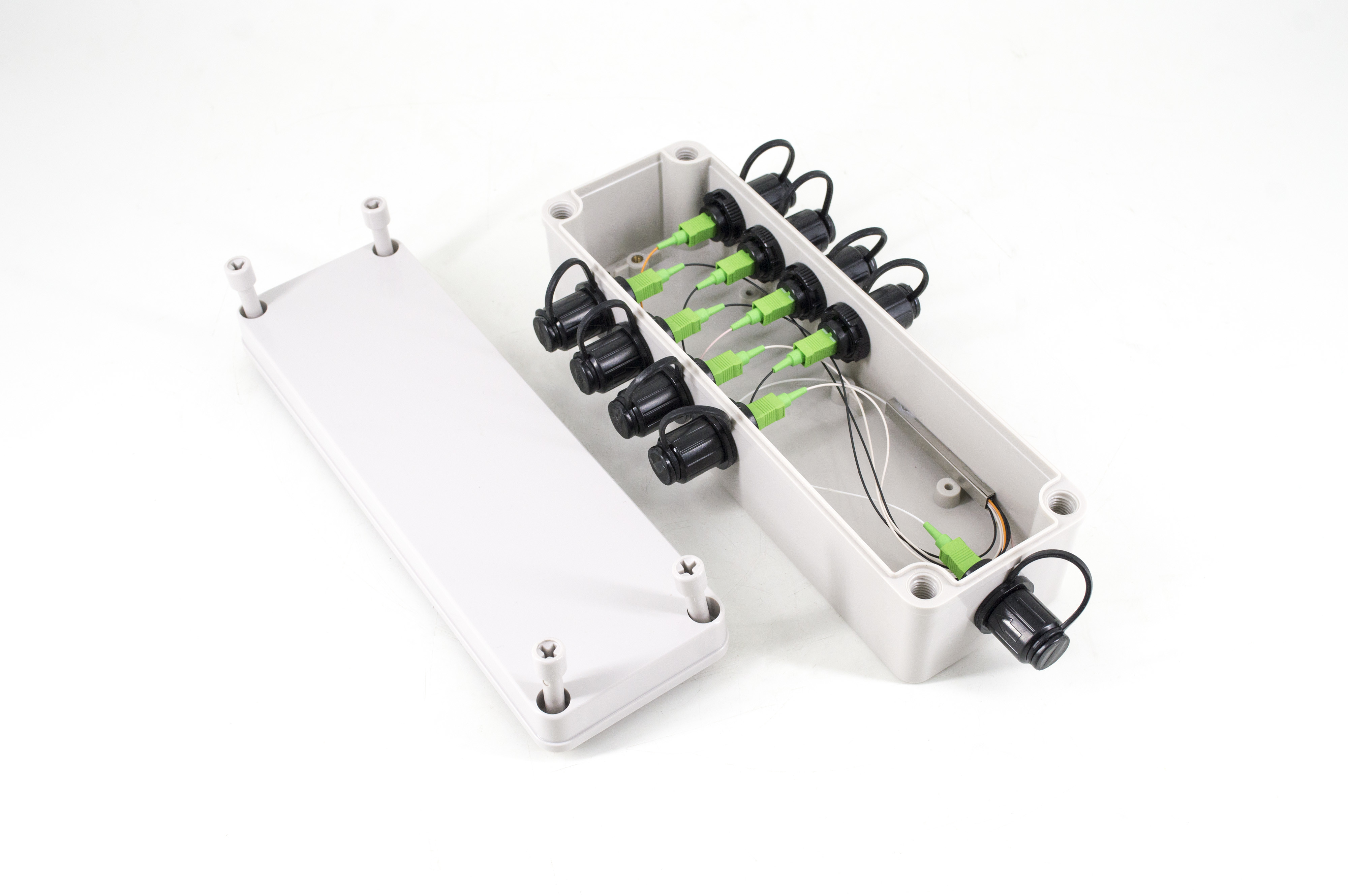

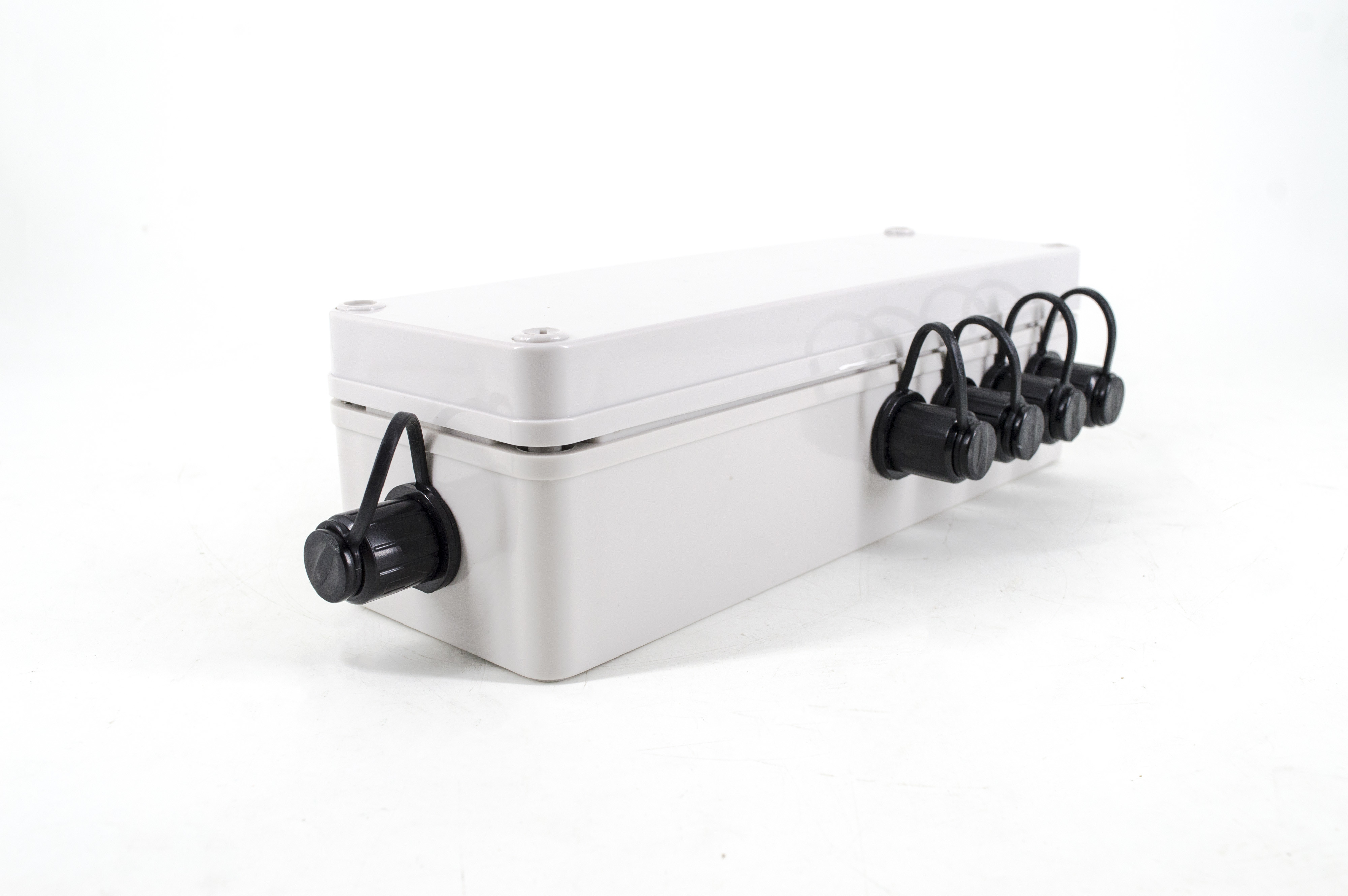

IP67 Waterproof Outdoor FTTH Terminal Box Multi - Ports With Mini SCConnector Images |
