Metal Body Wall Mount Fiber Termination Box , Fiber Optic Joint Box 24/48/72 Ports

Shenzhen Unifiber Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Metal Body Wall Mount Fiber Termination Box , Fiber Optic Joint Box 24/48/72 Ports

  • 1
  • 2

Brand Name : UNIFIBER

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs/day

Delivery Time : 5-7 days

Packaging Details : carton box

Application : indoor wall mounted

Adapter port : SC/FC/LC

Max. capacity : 24/48/72

Material : cold roll steel

Max. capacity of splice tray : 12fiber

Max Q'ty of splice tray : 4

Contact Now

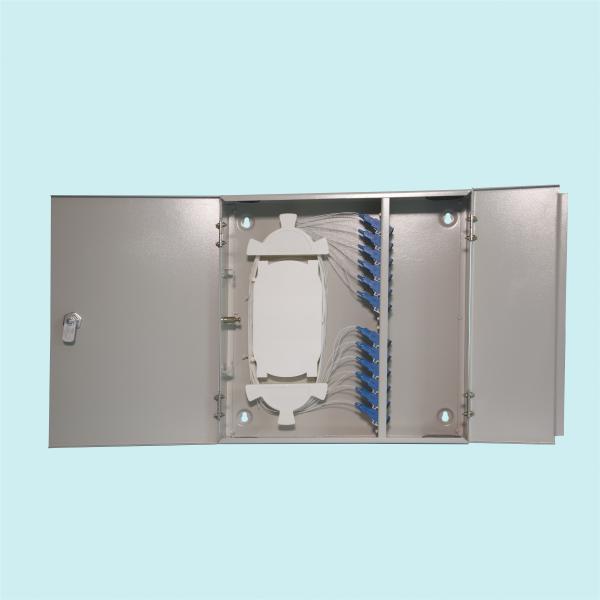

Ftth fiber optic terminal box, indoor wall mount, metal body, 24/48/72 ports for options

GP(05) series are available for small capacity communication system,wall mounting.The cabinet is composed of 2 parts,one links with optical cables for fusion connection between optical cable and fiber pigtails.The other part links with patch cord.Whole range protected design for fiber lay to ensure the bending radius=40mm.

Features
Reliable device to strip,protect,fix and earth optical fiber
Suitable for 6,12 , 24 and 48 fiber connection
Splice adoptst separate sructure, it is convenient for expansion and maintenance
Double-door design for easy installation and maintenance

Specification
Working temperature:-25℃ ~ +40℃
Storage temperature:-25℃ ~ +55℃
Relative humidity:≤85% (+30℃)
Atmospheric pressure:70 ~ 106 kpa

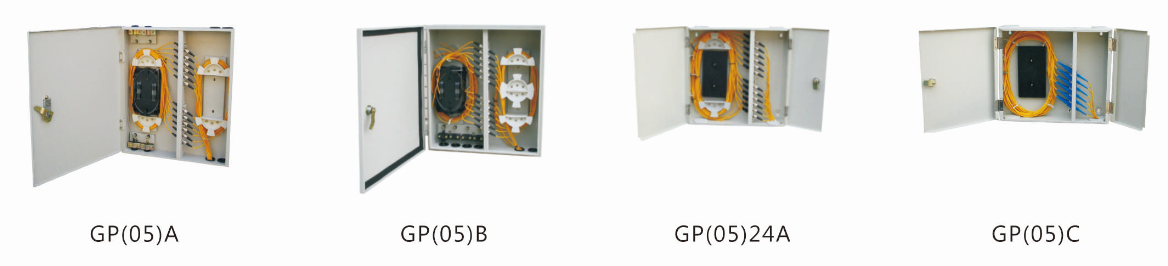

Type Size(mm) H*W*D Max capacity Outer carton dimension Outer cartion weight
GP(05)A-24 455*405*80 24 500*450*490/4pcs 29.5
GP(05)A-48 455*405*120 48 500*450*490/3pcs 25.3
GP(05)A-72 455*405*150 72 500*450*390/2pcs 19.5
GP(05)B-48 455*405*120 48 500*450*490/3pcs 27
GP(05)B-72 455*405*150 72 500*450*390/2pcs 20.5
GP(05)A-24A 350*350*80 24 405*405*605/5pcs 20.8
GP(05)B-24B 455*405*80 24 500*450*490/4pcs 29

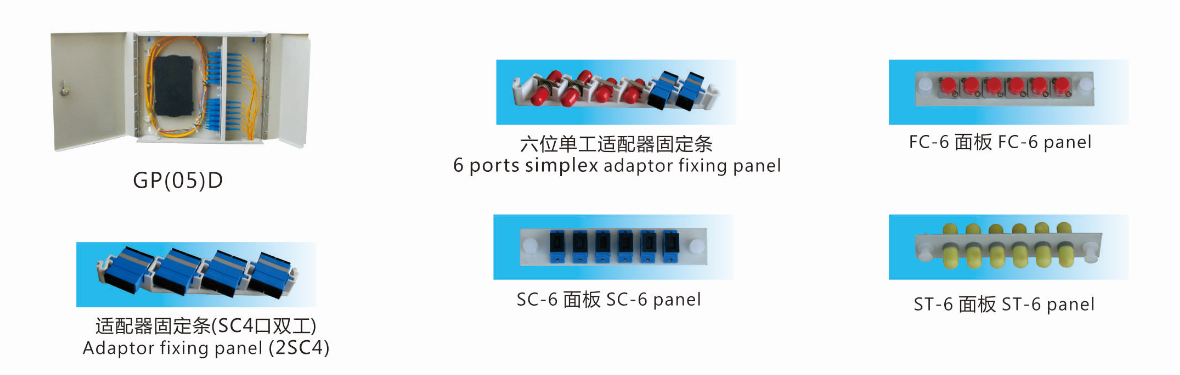

GP(05)C 350*300*80 12 405*355*605/5pcs 19.5
GP(05)D 350*300*80 24 405*355*605/5pcs 19.5

Metal Body Wall Mount Fiber Termination Box , Fiber Optic Joint Box 24/48/72 Ports

Metal Body Wall Mount Fiber Termination Box , Fiber Optic Joint Box 24/48/72 Ports
