Cold Rolled Steel Fiber Optic Cable Termination Box 4 8 16 Port For FC SC ST LC Adaptors

  • 1
  • 2
  • 3

Brand Name : UNIFIBER

Model Number : FDB0224

Certification : RoHS

Place of Origin : CHINA

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs/day

Delivery Time : 5-8days

Packaging Details : Carton box

Material : Cold rolled steel

Max capacity : 16 port

Application : FTTH access network

Performance : Anti-UV, Ultra violet resistant and rainfall resistant

Connector : SC/FC/ST/LC

Contact Now

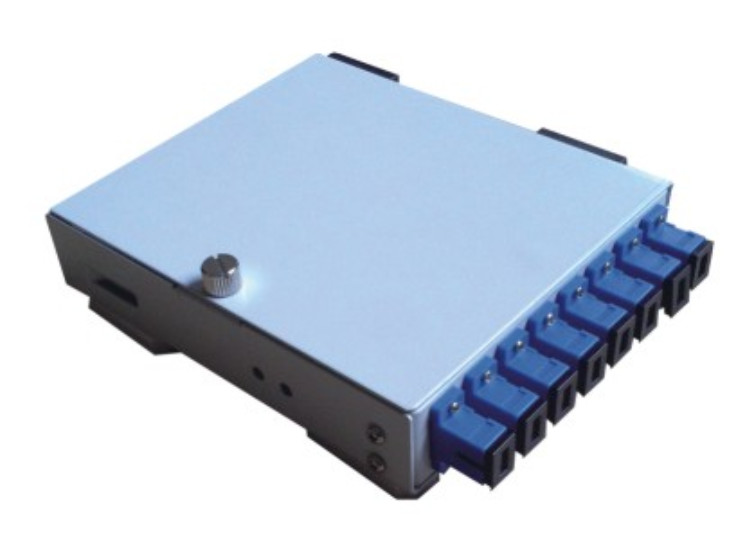

Fiber optic box wall, 4-8-16 port fiber termination panel, avaliable for FC,SC,ST,LC adaptors

Applications:
Applicable to FTTH project, fixed and welding with pigtails of drop cable of residential building and villas, etc

Features:
Design of hinge and convenient press-pull button lock
Small size, light weight, pleasing in appearance
Can be installed on the wall with mechanical protection function
With max fiber capacity 4-16 cores, 4-16 adapter output, available for the installation of FC,SC,ST,LC adaptors

Specification

Items FTB104 FTB108 FTB116
Dimension(mm) H140×W105×D28 H200×W148×D30 H245×W200×D48
Weight(Kg) 0.38 0.68 1.24
Cable diameter (mm) Φ5~Φ10
Cable entry ports 1hole 2holes 3holes
Max capacity 4cores 8cores 16cores

Cold Rolled Steel Fiber Optic Cable Termination Box 4 8 16 Port For FC SC ST LC Adaptors
