1310nm 1550nm ABS 1x8 Mechanical Optical Switch Non Latching 500mW

Name: 1310nm 1550nm ABS 1x8 Mechanical Optical Switch Non Latching 500mW
Brand: UNIFIBER-OEM
Price: 1 USD

1310nm 1550nm ABS 1x8 Mechanical Optical Switch Non Latching 500mW Manufactures

Brand Name : UNIFIBER-OEM

Model Number : 1x8 Mechanical Optical Switch

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs/day

Delivery Time : 3~5 business days

Packaging Details : Carton box

Product : 1310nm 1550nm 1x8 Mechanical Optical Switch Latching or No Latching

Wavelength : 1310nm or 1550nm

Switch Type : Latching or No Latching

Fiber Type : Corning SMF 28e+

Package : ABS module

Application : Network Route Protection

Contact Now

1xN Mechanical Fiber Optic Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using a patent pending opto-mechanical configuration and activated via an electrical control signal. The mechanical operation offers ultra-high reliability and fast switching speed as well as bi-directional performance. The MMS fiberoptic switches are true switching solutions for optical networking applications.

Key Features
♦ Fast Switching Speed

♦ Low Insertion Loss
♦ Wide Wavelength Range
♦ Low Optical Return Loss
♦ Low Cross Talk

Applications

♦ Configurable Add/Drop
♦ Network Route Protection
♦ R&D Laboratory

Parameters	Units	Performance Specifications
Wavelength range	nm	1310+/-40 1550+/-40
Switching Time	ms	≤ 7.5
Insertion Loss (@ 25 °C)	dB	≤ 1.2
Cross Talk	dB	≥ 55
Polarization Dependent Loss	dB	≤ 0.1
Optical Return Loss	dB	≥ 50
Input Optic Power	mW	500
Life Cycles	-	107
Fiber Type	-	Corning SMF 28e+
Connector Type	-	FC, SC, LC (customer optional)
Switch Type	-	Latching or No Latching (optional)
Switching Voltage	V	4.5-5.5
Switching Current	mA	120
Dimension	mm	1x4: 55x48x15 1x8: 56x80x15

1310nm 1550nm ABS 1x8 Mechanical Optical Switch Non Latching 500mW

Product Tags:

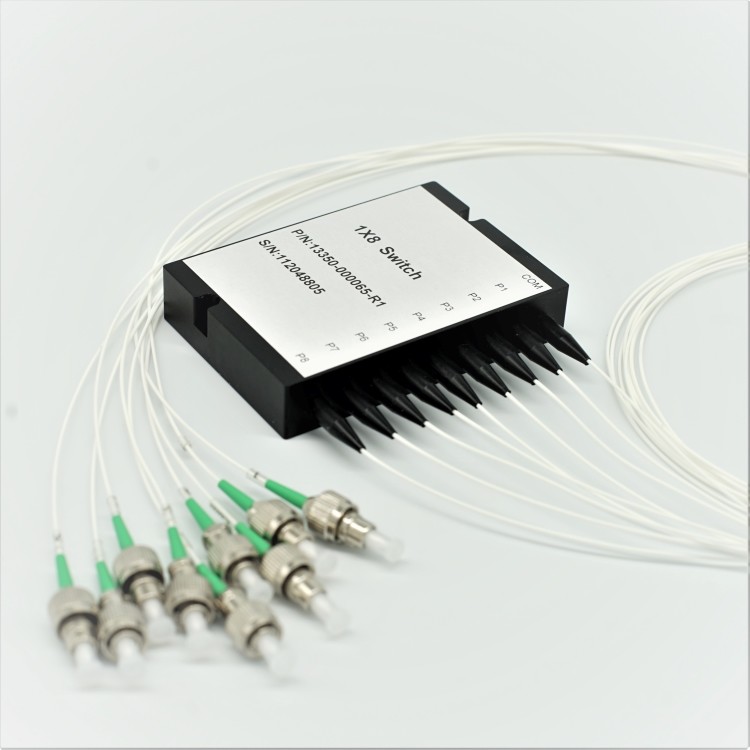

1310nm 1550nm ABS 1x8 Mechanical Optical Switch Non Latching 500mW Images
